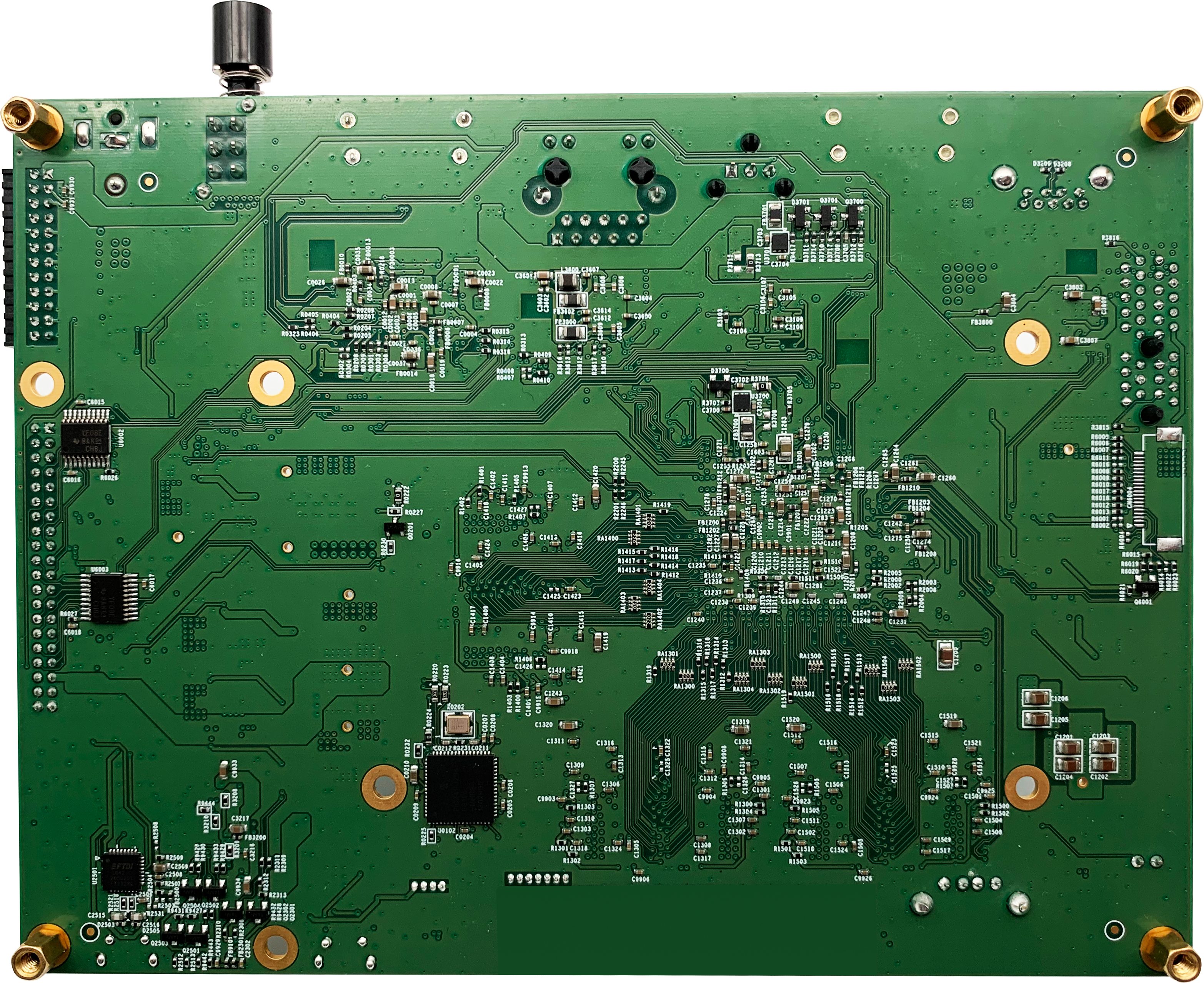

High-definition, high-performance, low-cost TV systems are realized with the latest 4K technology such as HDR processing. The board features the Socionext SC1408AJ1 with an integrated Dual Arm® Cortex®-A72 and Dual Cortex®-A53 processors and a high performance Mali™-T820MP3 GPU, making it capable of running any commercial set-top solution based on Linux or Android.


Additional Information

Component Description
SoC Socionext LD20
CPU Quad-core 64-bit, 2x ARM Cortex-A53, 2x ARM Cortex-A72
RAM 3GB DDR3 1866MHz
Storage 16GB eMMC
Micro SD
Ethernet Port 10M/100M/1000Mbps
PHY : RTL8211E-VB-CG(REALTEK)
Wireless WiFi : Dual-band 2T2R 802.11a/b/g/n/ac
BT : Ver.4.1
Chipset : RTL8822BU(REALTEK)
Module : FN-LINK 6222D-UUB
USB USB3.0 x1, USB2.0 x1, micro USB x 2(for Debugging)
PCIe One PCIe x1 2.0 interfaces
Expansion Interface Linaro 96Boards Low Speed Expansion slot
Dimension Standard 160×120 mm 96Boards Enterprice Edition form factor
Connectors One connector for Smart Card One connector for TSI
