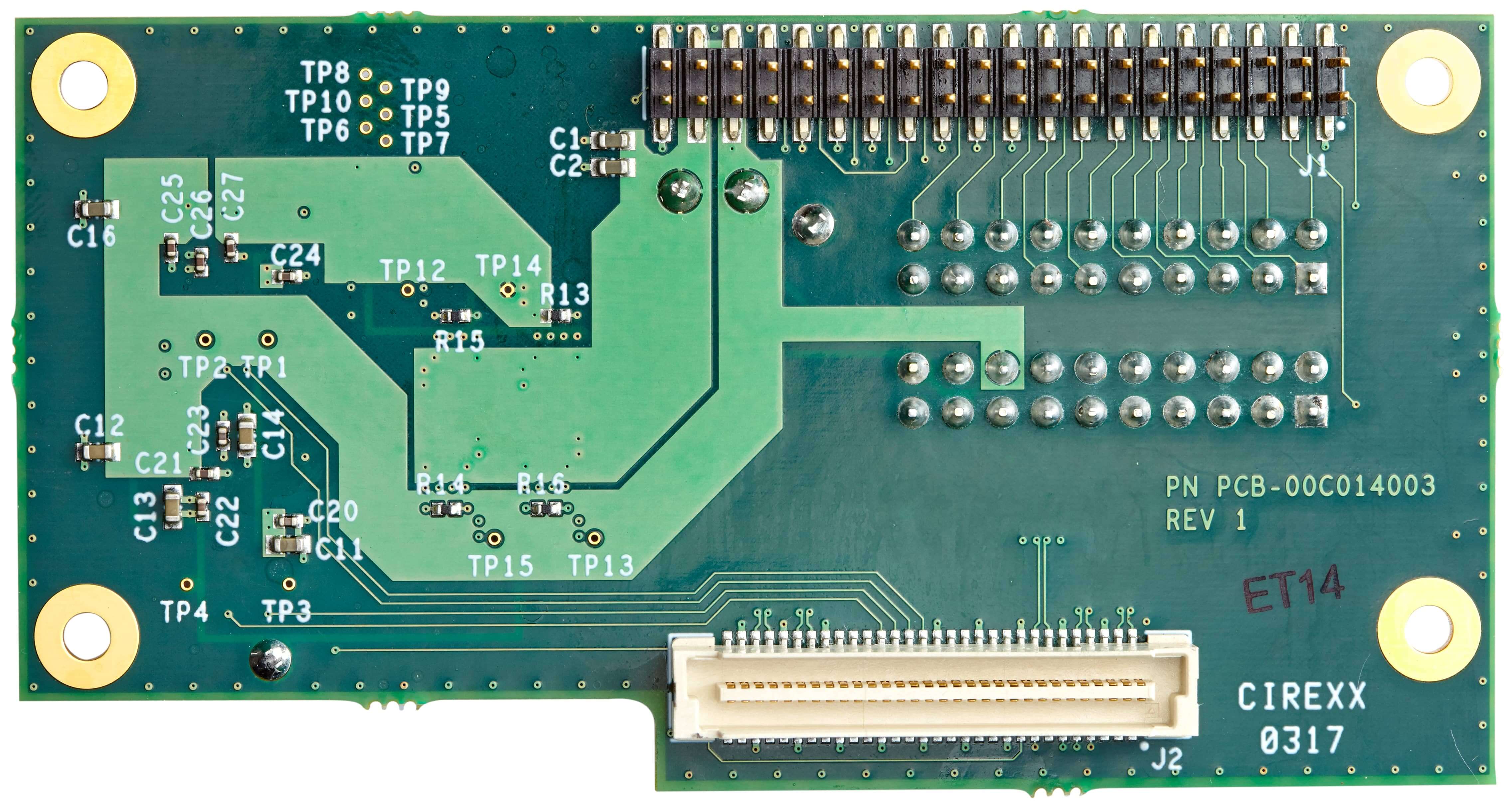

D3 Engineering DesignCore™ Camera Mezzanine Board OV5640 enables direct connection of up to two MIPI CSI-2 cameras to the DragonBoard™ 410c. Direct MIPI CSI-2 access to camera data allows more realistic evaluation of embedded vision designs. Eliminating the need to decode USB or Ethernet protocols results in lower power and higher performance.
- Camera Interfaces: Two MIPI CSI-2 (2-lane)
- Expansion Interfaces: Two UART, two SPI, one I2C, one PCM, GPIO.
- Designcore Camera Mezzanine WIKI
- Datasheet and Schematics (View / Download)
- OV5640 Quickstart Guide (View / Download)
