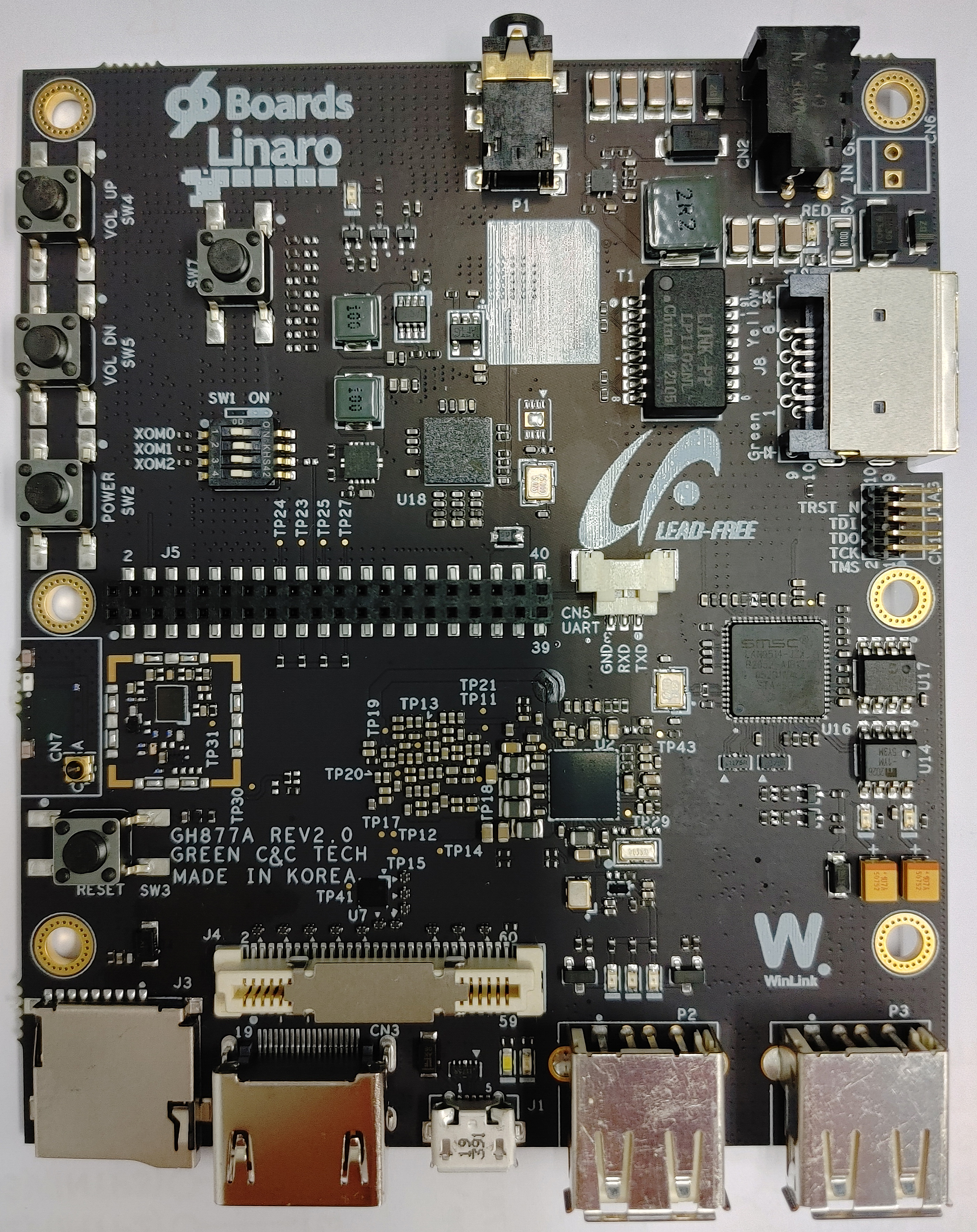

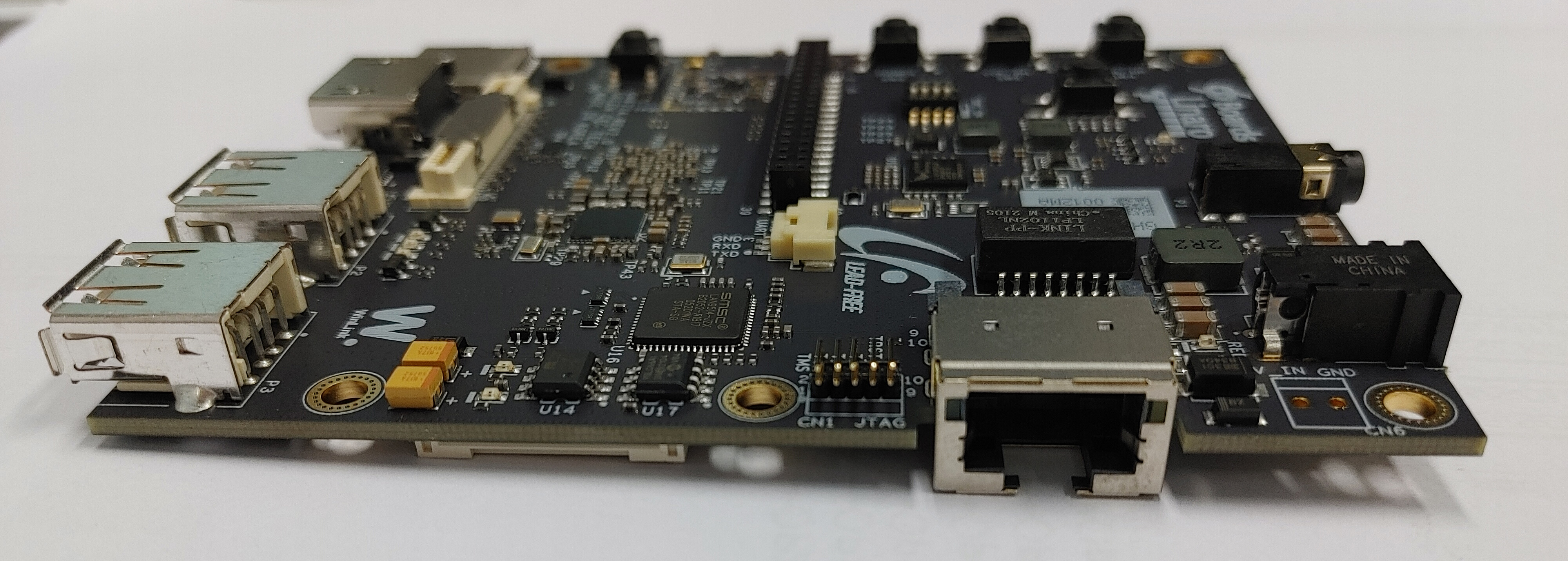

WinLink E850-96 Board is a 96Boards CE HW Specification V2.0 Development Board based on Samsung Exynos 850 Mobile processor, developed by WinLink.
Exynos 850 is manufactured on 8nm low-power FinFET process design, high performance optimized Little Cortex-A55 Octa micro-processor for smart phone and tablet applications and also for embedded gadgets.
The Exynos 850 enables high-quality display resolutions, support for up to FHD+ (2520x1080) resolution, sharp video on their devices. The Exynos 850 processer also contains the HEVC (High Efficiency Video Coding) codec, which enables FHD(1920X1080) 60fps encoding and decoding simultaneously.
Exynos 850 provides the Mali-G52 GPU with wide range of APIs such as OpenGL ES1.1/2.0/3.2, OpenCL 2.0 Full Profile and Vulkan 1.0/1.1. Video processing supports FHD+(1080x2520) resolution.
WinLink E850-96 Board is 100mm x 85mm in size, 96 Boards CE(Consumer Edition) Extended version including NPU.
|SoC||Exynos 850, 64-bit|
|CPU||Cortex-A55 Octa core up to 2.0GHz|
|GPU||ARM Mali G52MP1, 2nd Generation Bifrost architecture |
OpenGL ES1.1/2.0/3.2 OpenCL 2.0 Full Profile and Vulkan 1.0/1.1
|RAM||4GBytes LPDDR4 on board(MCP, KMDP6001DA-B425)|
|Storage||eMMC v5.1, 64GB onboard(MCP, KMDP6001DA-B425) and 1 x MicroSD card slot|
|Ethernet Port||1x10/100 Ethernet (RJ-45) socket|
|Wireless||WiFi 2.4/5GHz & BT5.0 (S612 RF transceiver)|
|USB||1 x USB 2.0 Micro B (Debug only ), |
2x USB 2.0 Type A (Host mode only)
|Display||HDMI (v1.4 Type-A full-size connector )|
|Video||HEVC (High Efficiency Video Coding) codec which enables FHD(1920X1080) 60fps encoding and decoding simultaneously|
|Audio||Stereo Headphone output & MIC input via 3.5mm Audio Jack |
Built-in audio interfaces HMU(Headphone Management Unit) by PMIC
|Camera||Up to 3-image sensor(camera) inputs with a max. resolution of 21.7MP Bayer supported|
|Expansion Interface||40-Pin Low Speed Header |
60-Pin High Speed Header
|LED||3x green user controlled LEDs |
1x blue Bluetooth enabled
1x yellow WiFi enabled
|Button||Power, Volume UP/DN, Resets|
|Power Source||12V@2A adapter with a DC plug: |
Plug specification is inner diameter 1.75mm and outer diameter 4.75mm
|OS Support||TAOSP(Android-10 based k4.14) / LINUX(TBD)|
|Size||100mm x 54mm meeting 96Boards™ Consumer Edition Extended Standard form dimensions specifications|
