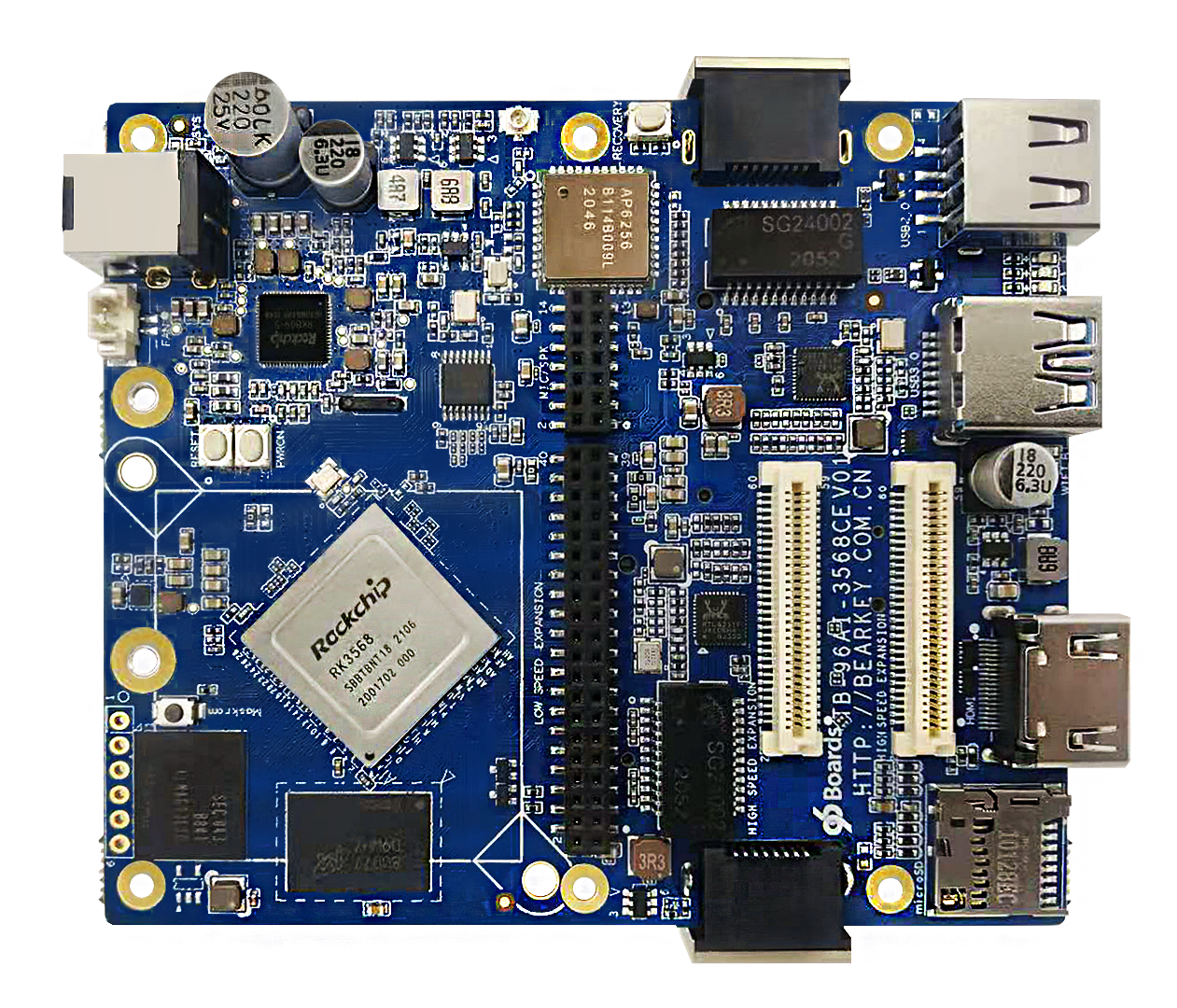

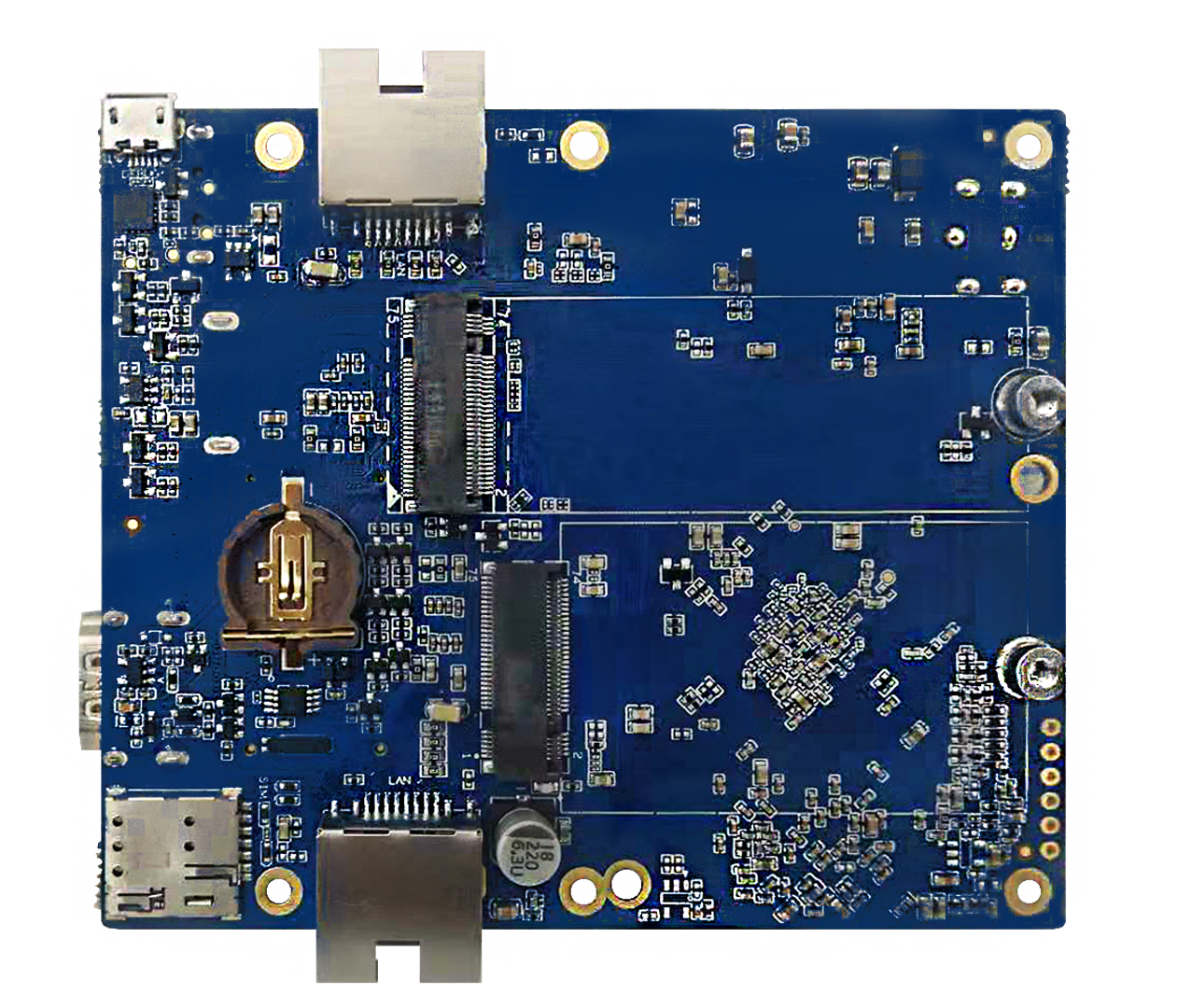

TB-96AI-3568CE Development Board is following 96Boards.CE2.0 standard specifications，based on Rockchip artificial intelligence chip RK3568 developed by BeiQi Technology. Rockchip RK3568 chip is a general-purpose SOC with high performance and lower power consumption designed for personal mobile internet devices and AIoT equipment. It adopts 22nm process technology, integrating 4-core arm architecture A55 processor, Mali-G52 1-Core-2EE graphics processor and 4K decoding/1080p coding. Rk3568 supports different high speed interfaces such as SATA / PCIe / USB3.0, with built-in independent NPU, which can be used for lightweight AI applications. RK3568 supports Android 11 and Linux systems, and is mainly oriented to the customized market of Internet of things gateway, NVR storage, industrial control panel, industrial detection, industrial control box, karaoke, cloud terminal, vehicle central control and other industries.
Additional Information
| Component | Description |
|---|---|
| SoC | RK3568 |
| CPU | 4x ARM®Cortex-A55 up to 2.0 GHz |
| GPU | Mali-G52 |
| RAM | 2048 Mbyte DDR3 |
| Storage | eMMC 16 Gbyte microSD Socket: UHS-1 v3.01 |
| Ethernet Port | 2x 10/100/1000 Mbit/s, IEEE 802.3 Compliant |
| Wireless | WiFi: 5 GHz & 2.4GHz IEEE 802.11 a/b/g/n/ac Bluetooth® v4.1 External Antenna |
| USB | Host: 1x type A, 2.0 high-speed OTG: 1x type A, 3.0 high-speed |
| Display | HDMI 3.0 |
| Audio | Over HDMI |
| Expansion Interface | 96Boards Compliant: 40-Pin Low Speed Header 14-Pin Low Speed 2 Header 60-Pin High Speed Header 60-Pin High Speed 2 Header |
| LED | 4x green user controlled LEDs 1x blue Bluetooth enabled 1x yellow WiFi enabled |
| Button | Power, Reset & Recovery |
| Power Source | DC Power Jack: 5.5mm*2.5mm Center Positive 8v - 18v upto 24W |
| OS Support | Linux: Debian & Buildroot Android 11 |
| Size | 100mm x 85 mm |
