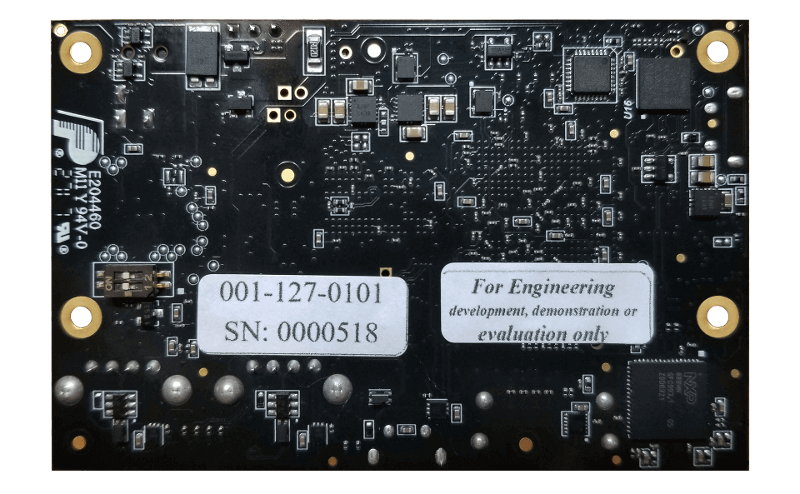

The Chameleon96™ board, based on Intel® Cyclone V SoC FPGA, is a member of 96Boards community and complies with Consumer Edition board specifications. The Chameleon96™ meets all 96Boards mandatory specifications (excluding MIPI DSI Interface) and most optional specifications. The Chameleon96™ features Dual ARM Cortex-A9 processors and a set of peripherals allow direct interfacing and connecting to MMC/SD card, HDMI out, USB, WLAN and BLE. Two expansion connectors provide additional interfaces to cameras, USB, UARTs, I2C, SPI and GPIOs. The use of the FPGA fabric for the video processing allows development of custom IPU/GPU/VPU solutions on this platform.


Additional Information

Component Description
SoC Intel Cyclone V SoC FPGA
Dual ARM Cortex-A9
110K Logic Elements FPGA fabric
GPU Graphics based on Intel Video Suite for FPGA
RAM 512MB DDR3L (support to 1GByte)
PMU 4 to 64 GByte microSD
Connectivity WLAN 802.11 b/g/n 2.4GHz, Bluetooth 4.1, One USB 2.0 OTG micro AB, Two USB 2.0 HOST
1 USB 2.0 Host via expansion connector, Integrated USB-Blaster II JTAG cable
USB
Display Up to 1080p@60fps HD video through a HDMI interface
Video
Audio HDMI Audio, Bluetooth Audio, I2S 4Wire interface via expansion connector
Camera MIPI CSI interface (Mobile Industry
Processor Interface - Camera Serial
Interface) 2x lane. (requires a custom IP for the FPGA)
Expansion Interface One 40-pin Low Speed (LS) expansion connector
UART x2, SPI, I2S, I2C x2, GPIO x12 and DC power.
One 60-pin High Speed (HS) expansion connector
SDHC/SDIO, 2L-MIPI DSI, 2L-MIPI CSI, I2C, USB 2.0 HOST & USB 2.0 HOST HSIC
The board can be made compatible with Arduino using an add-on mezzanine board.
User Interface Power Button, Reset Button, 6 LED Indicators
4 – user controllable
2 – for radios (BT and WLAN activity)
Power Source +5V to +42VDC (exceeding 96Boards specifications)
OS Support Linux OS, terminal base (BuildRoot build)
Linux OS, GUI (Yocto build)
Size Dimensions: 54mm x 85mm meeting 96Boards™ Consumer Edition standard dimensions specifications
