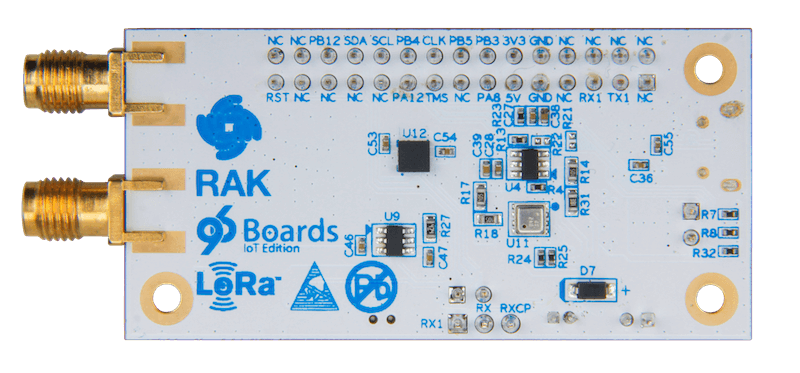

WisTrio LORA Tracker by RAK Wireless is based on the RK5205 chipset. This extremely low power consumption device supports multiple global bands, contains a variety of onboard sensors, offers standard IO (I2C, GPIO, UART and ADC) and several antenna options (SMA & IPEX). All of this on the 96Boards IoT Edition standard footprint!


Additional Information

Component Description
Processor RAK5205
Power Consumption 16uA(sleep mode), support GPS Power-off mode, MCU & Sensor Support sleep mode
Interface I2C, GPIOs, UART and ADC
Dimension 60 x 30 x 11.45 mm(LxWxH)
Band support the Global Multiple Bands
Sensors LIS3DH & BME680 inside
Antenna Options SMA & iPEX can be switched
